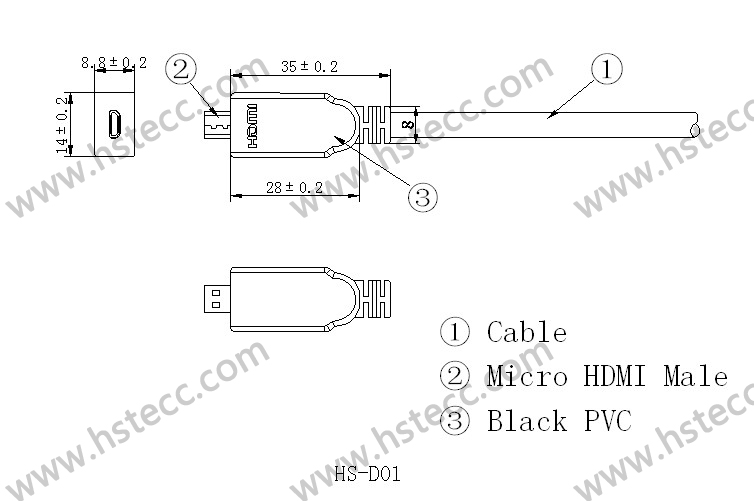

Item No	HS-D01	Guage	30AWG
Product	Micro Hdmi cable	OD	5.5mm
Type	Micro D male to Standard A male	Ferrite core	Optional
Connector	24K gold plated or nickel plated	Length	Up to 33ft ( Up to 10m)
Speed	Up to 10.2Gbps	Insulation	HDPE
Conductor	Bare copper, Tinned copper or CCS ( copper cover steel)	Shielding	Aluminum foil and Braiding
Compliance	ATC,CE,FCC,ROHS,REACH	Color	Black / Red or White (customized)
Package	Polybag,Zip bag,OPP bag, bag with paper card, gift box, blister or Customized	Jacket	PVC, with or without Nylon net ,can be customized
Compatibility	Supports 3D Content 4K, 1440p, 1080p, 1080i, 720p, 480p, and 480i ResolutionsAudio Return Channel Supports Highest Refresh Rates Available Transfer Rates of Up to 340Mhz or 10.2gbps True HD Dolby 7.1 and DTS-HD Master Audio HDCP Compliant Ethernet Channel For Sharing Internet Between HDMI Devices
QC 100% open and short test Voltage DC300V 5M ohm/10ms Insulation Resistance 10M ohm min Contact Resistance 3 max Working Temperature -25。C-80。C
It widely used in mobile phones,Portable media players,digital,cameras,to the HD displays and so on
