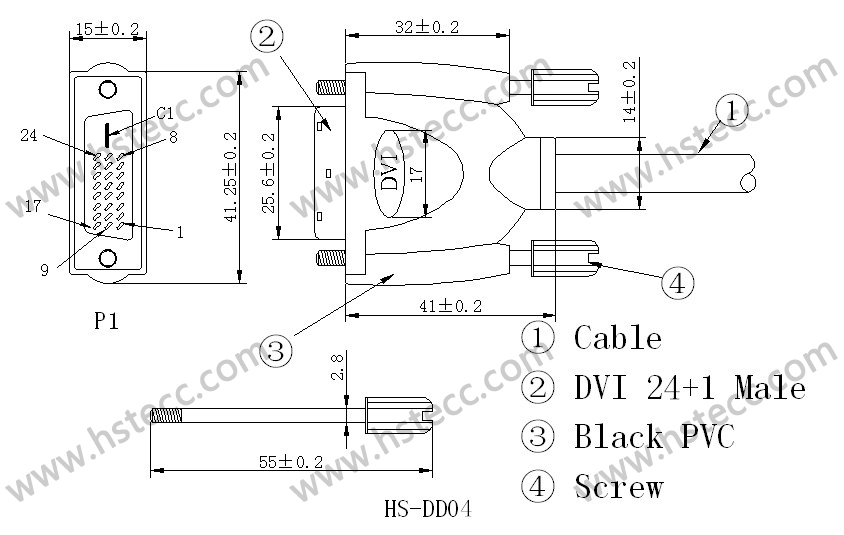

HS-DD04



Item No
HS-DD04
Guage
30/28/26AWG
Product
DVI to DVI cable
OD
7.3/8.0mm
Type
male to male
Ferrite core
Optional
Connector
24K gold plated or nickel plated
Length
Up to 50ft ( Up to 15m)
Speed
Up to 10.2Gbps
Insulation
HDPE
Pin

18+1 ,24+1 ,18+5 ,24+5

Shielding
Aluminum foil and Braiding
Compliance
CE,FCC,ROHS,REACH
Color
Black (customized)
Package
Polybag,Zip bag,OPP bag, bag with paper card, gift box, blister or Customized
Jacket
PVC, with or without Nylon net ,can be customized
Compatibility
Supports 3D Content 4K, 1440p, 1080p, 1080i, 720p, 480p, and 480i ResolutionsAudio Return Channel Supports Highest Refresh Rates Available Transfer Rates of Up to 340Mhz or 10.2gbps True HD Dolby 7.1 and DTS-HD Master Audio HDCP Compliant Ethernet Channel For Sharing Internet Between HDMI Devices


QC
100% open and short test
Voltage
DC300V 5M ohm/10ms
Insulation Resistance
10M ohm min
Contact Resistance
3 max
Working Temperature
-25C-80C




 It widely used in Digital TV,LCD,DVD,HD devices,Home theatre Satellite TV,Set-top box,Projector, and  so on.
