Item No	HS-VV01	Guage	30/28/26/24AWG
Product	VGA to VGA cable	OD	5.5/6.0/7.3/8.0mm
Type	male to male	Ferrite core	Optional
Connector	24K gold plated or nickel plated	Length	Up to 65ft ( Up to 20m)
		Insulation	HDPE
Pin	3+2/4/6/8	Shielding	Aluminum foil and Braiding
Compliance	CE,FCC,ROHS,REACH	Color	Black (customized)
Package	Polybag,Zip bag,OPP bag, bag with paper card, gift box, blister or Customized	Jacket	PVC, with or without Nylon net ,can be customized
Compatibility	VGA cable Support VGA/SVGA/WSVGA/XGA/WXGA with VGA supported monitor Supports 4.95Gbps bandwith, with Analog compliant
QC 100% open and short test Voltage DC300V 5M ohm/10ms Insulation Resistance 10M ohm min Contact Resistance 3 max Working Temperature -25。C-80。C

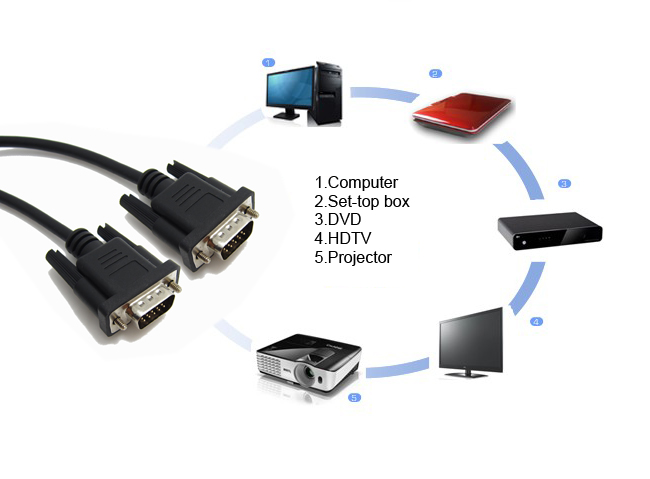

It widely used in connects PC or laptop to multiple projectors,LCD monitors,and other video display systems, and  so on.
